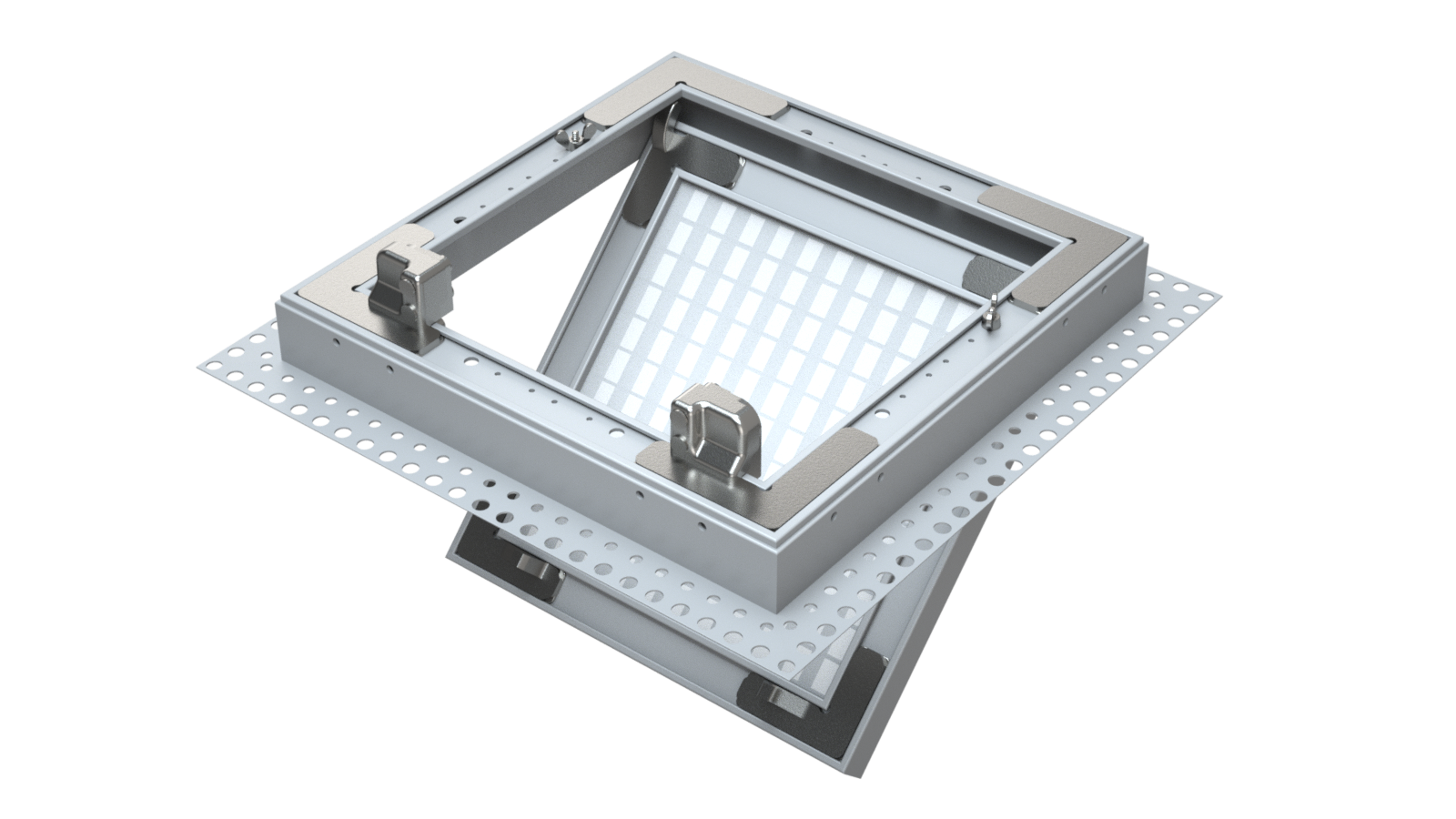

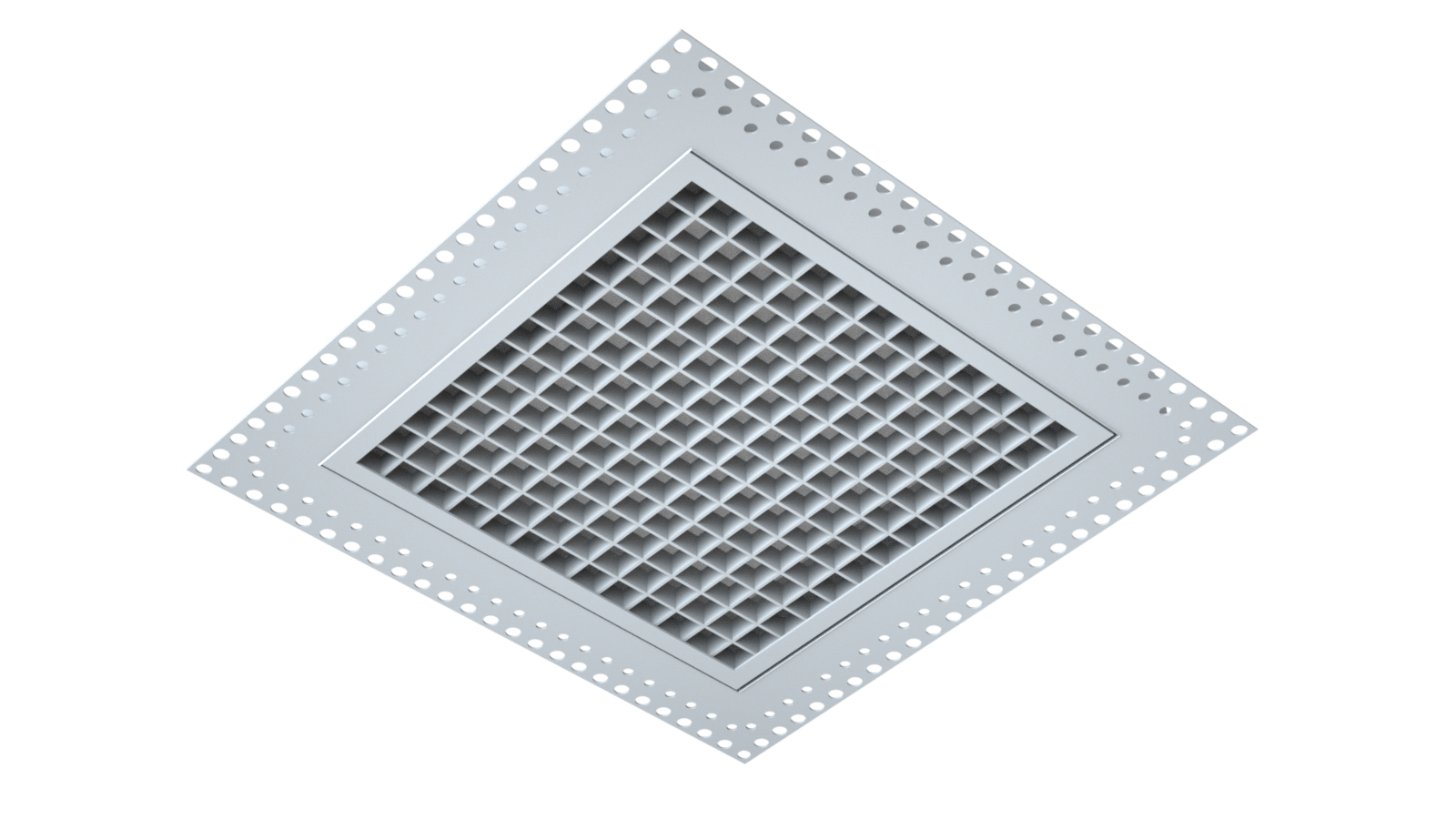

Eko Luxe Perforated Honeycomb

Produktbeschreibung

  • Snap closure
  • Concealed frame after plaster skimming
  • uitable for 12,5, 15 and 25 mm plasterboard, bricks and so on
  • Can be used on walls Works with push-push system easy to open and close

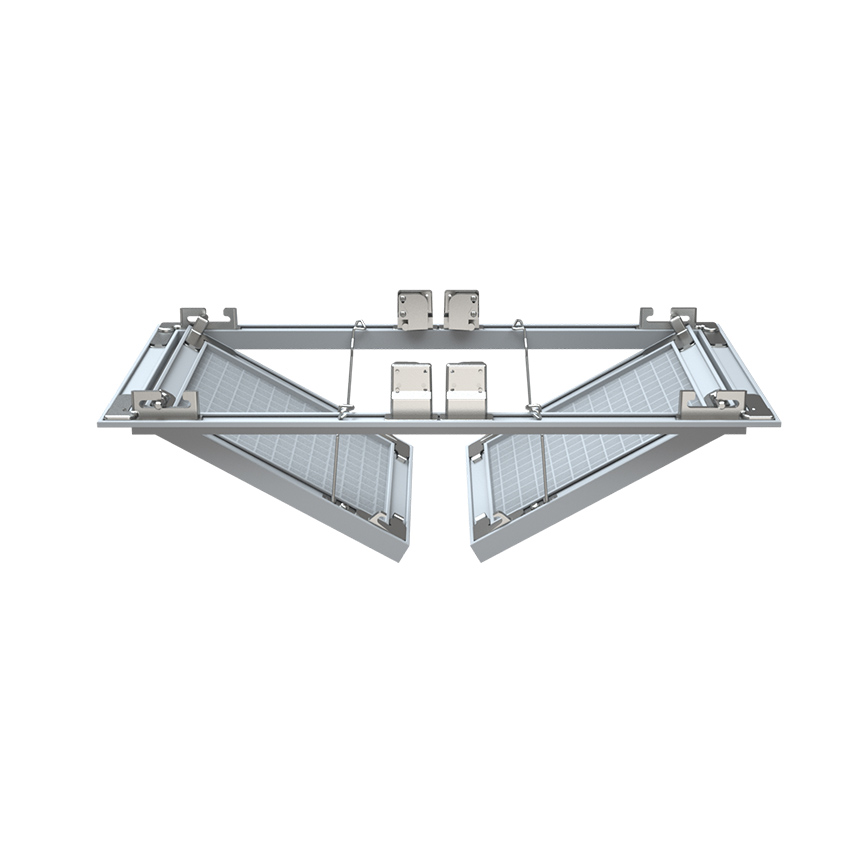

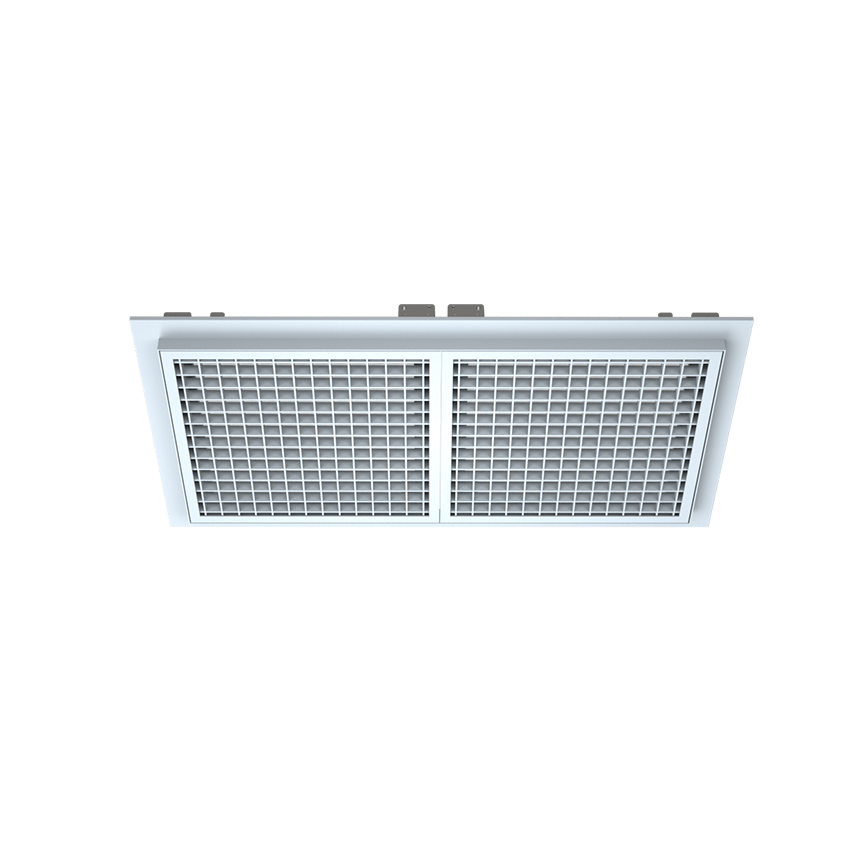

  • Applicable for places which require air circulation It can be produced in 2 panels
  • Aluminium electrostatic powder coated Innerframe (Honeycomb) is made of pvc
  • Non fire rated access panel
  • Mechanism is made of zamak and steel

Measure table

The standard measurements of our Access Panels which we manufacture you can see in our table. Besides these measurements we also manufacture Bespoke Access Panels. If you can supply us with your measurements for Bespoke Access Panels we will advice you on delivery time.

Thickness Height Width Weight
50 mm 20 cm 20 cm 1 kg.
50 mm 25 cm 25 cm 1,25 kg
50 mm 30 cm 30 cm 1,71 kg
50 mm 40 cm 40 cm 2,50kg
50 mm 45 cm 45 cm 3,00 kg
50 mm 40 cm 60 cm 3,38 kg
50 mm 50 cm 50 cm 3,33 kg
50 mm 60 cm 60 cm 4,54 kg
50 mm 60 cm 120 cm 7,70 kg
